DIGI-SHOCK G/GT - DATA LOGGER

Online Store

To buy small quantities, visit our online store:

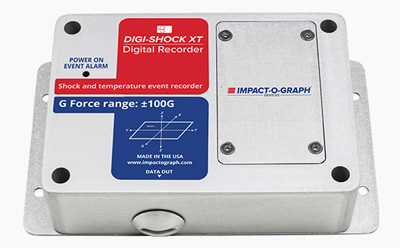

Reusable impact and temperature data logger Digi-Shock G/GT.

Digi shock G. Data logger. Temperature logger. Shock logger.  Impact O Graph. Sercalia

Digi-Shock G/GT record the impact G as well as the temperature.

DigiShock Impact-O-Graph data logger records impacts and temperature during the shipping process as well as being reusable. The Digi-Shock G data logger only records impact while the Digi-Shock GT recorder records both impact and temperature. The G-force range available in Digi-Shock G/GT are 25 G or 100 G.

Our control software, which is included in the product, allows an easy use and a quick and easy configuration of the shipping or mission parameters. Facilitates the start and end date of the mission, the highest and lowest temperatures, with the most relevant impacts on each axis during a shipping process.

The Digi Shock  LED indicator flashes when the user-defined alarm exceeds the set parameters, informing users that the controlled product may have been damaged and must be inspected immediately.

  • Fully reusable long-life device
  • Registers the X, Y, Z axes and the temperature
  • Alarm levels defined by the user
  • LED for normal operation and alarm
  • Simple software for Windows for quick and easy configuration
  • The mission data can be sent by email, once downloaded directly into the software for evaluation
  • No software is required to recover encrypted data file in the destination
  • The 25G model provides more data
  • Duration of the impact (exclusive function of the Digi-shock GT 25G)
  • Functional update every 8 hours
  • Serialized identification for greater security
  • Complete and detailed analysis of transport data with acceleration of values in all axes and temperature
  • Zoom function for a specific time interval of evaluation
  • Data export and printing capacity



Aplications

DigiShock, temperature logger and shock logger has a multitude of applications in different sectors. Some of them are:

  • Logistics, transport and storage
  • Energy
  • Electronics
  • Chemical / Petrochemical
  • Telecommunications
  • Drilling / Mining
  • Defense and Aerospace
  • Electronics devices
  • Semiconductors
  • Medical devices
  • Laboratory elements
  • Hardware
  • Artworks
  • Glass articles
  • Packaging in general



Specifications

Digi Shock, temperature data logger

Energy supply C-Cell Battery (3,6 V litium) or USB cable
Battery duration 6 months
Temperature lecture 1/minute
Memory > 1.000.000 of events
Accelerometers 25 G o 100 G. Lecture 250 per minute.
Operating temperature 4 oC to 40 oC
Measurements 127 x 89 x 38 mm.
Weight 226,8 gr with the battery mounted
Certificate TUV, CE y CB





Supplies

Digi-Shock G/GT shock and temperature dataloggers are supplied in boxes per unit.
