DIGI-SHOCK XT DATA LOGGERS

Online Store

To buy small quantities, visit our online store:

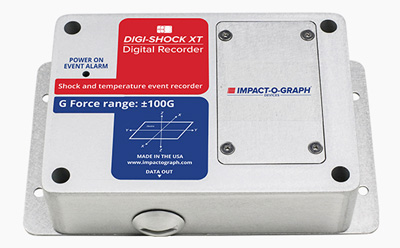

Impact and temperature data logger Digi-Shock XT.

Digi-Shock XT defines the impact Gs by recording them at the same time as the temperature.

Digi-Shock XT is available with a G-Force range of 25 G or 100 G. It records user definable impacts on all three axes (X, Y, Z) up to 6 months.

Digi-Shock XT, robust construction in aluminum IP67 resistant, completely reusable, consists of batteries of long duration and high sampling for a detailed resolution.

The Digi-Shock XT LED flashes when the user-defined alarm exceeds the set parameters, informing customers that the controlled product may have been damaged and that it must be inspected immediately.

Digi-Shock XT has a new improved registration system, which alerts and ensures that the device is really working. The easy-to-use Digi-Shock XT control software has the following languages: English, German, Spanish, Chinese and Portuguese.

Characteristics:

  • Fully reusable long-life device
  • Registers the X, Y, Z axes and the temperature
  • Alarm levels defined by the user
  • LED for normal operation and alarm
  • Simple software for Windows for quick and easy configuration
  • The mission data can be sent by email, once downloaded directly into the software for evaluation
  • No software is required to recover encrypted data file in the destination
  • The 25g model provides more data
  • Impact duration (25g model only)
  • Functional update every 8 hours
  • Serialized identification for greater security
  • Complete analysis of transport data with acceleration of values in all axes and temperature
  • Zoom function for a specific time interval of evaluation
  • Data export and printing capacity

Applications

The Digi-Shock XTimpact recorders have many applications in different sectors. Some of them are:

  • Logistics, transport and storage
  • Energy
  • Electronics
  • Chemical / Petrochemical
  • Telecommunications
  • Drilling / Mining
  • Defense and Aerospace
  • Electronics devices
  • Semiconductors
  • Medical devices
  • Laboratory elements
  • Hardware
  • Artworks
  • Glass articles
  • Packaging in general

Specifications

Power A single C-Cell battery (3.6v Lithium primary) or USB cable
Battery Life 6 months
Temperature Read 1/minute
Accelerometer ± 25g or ± 100g on the X,Y and Z axis lines. Samples 250 times per second
Operating Temperature – 40°F to 140°F (battery operating range)
Size 130 x 90x 35 mm.
Weight 635 gr with batteries installed
Certification TUV, CE and CB

Supplies

The Digi-Shock XT impact and temperature data loggers are supplied in boxes per unit. Contact us for a budget on this product.

Registrador Digi-shock XT
Registrador Digi-shock XT battery
Registrador Digi-shock XT cable
Registrador Digi-shock XT maletín
